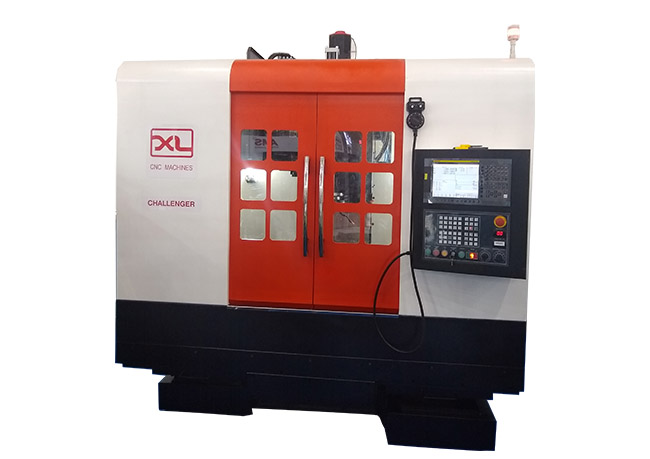

Variants in Challenger: 645
This Vertical Machining Center is an ideal fit for small and medium sized components and continuous operations on VMC. Capable to deliver high speed performance and productivity. Delivers sufficient rigidity. Offering great productivity and efficiency. An X-Axis traverse of 610mm, Y-Axis traverse of 450mm and Z-Axis vertical movement of 500mm. The clamping area is 450x900mm. FANUC/MITSUBISHI/SIEMENS CNC System.
| Unit | CHALLENGER -645 | |
|---|---|---|
| Table | ||
| Clamping Area (X*Y) | mm | 450x900 |
| No./width/CD of T-Slots | mm | 5/18/80 |
| Max load on table | kgf | 600 |
| Traverse | ||
| Longitudinal movement(X-axis) | mm | 610 |
| Transverse movement (Y-axis) | mm | 450 |
| Vertical movement (Z-axis) | mm | 500 |
| Spindle | ||
| Taper | BT-40 | |
| Speed (Std.) | RPM | 6000 |
| Power | kW | 5.5/7.5* |
| Axes | ||
| Rapid | m/min | 30 |
| Feed rate | mm/min | 1-10,000 |
| Guideways | LM | |
| ATC | ||
| Type of tool changing system | - | Twin Arm |
| No. of tools (Std.) | No. | 20 |
| Max tool dia with adj pocket full | mm | 80 |
| Max tool dia with adj pocket empty | mm | 125 |
| Max tool length | mm | 250 |
| Max tool weight | kgf | 8 |
| Tool changing time (tool-tool) | sec | 2.5 |
| Accuracy | ||
| Positioning | mm | 0.010 |
| Repeatability | mm | 0.005 |
| Installation Data | ||
| Machine weight | kgf | 4250 |
| Floor space (L x B) | mm | 2300x2150 |
| Machine height (H) | mm | 2100 |
| Total connected load | kW | 15 |
| Loading Height | mm | 950 |
| CNC system | FANUC / MITSUBISHI / SIEMENS |
Note: Technical Specifications and illustrations are subject to change arising out of continuous product development
